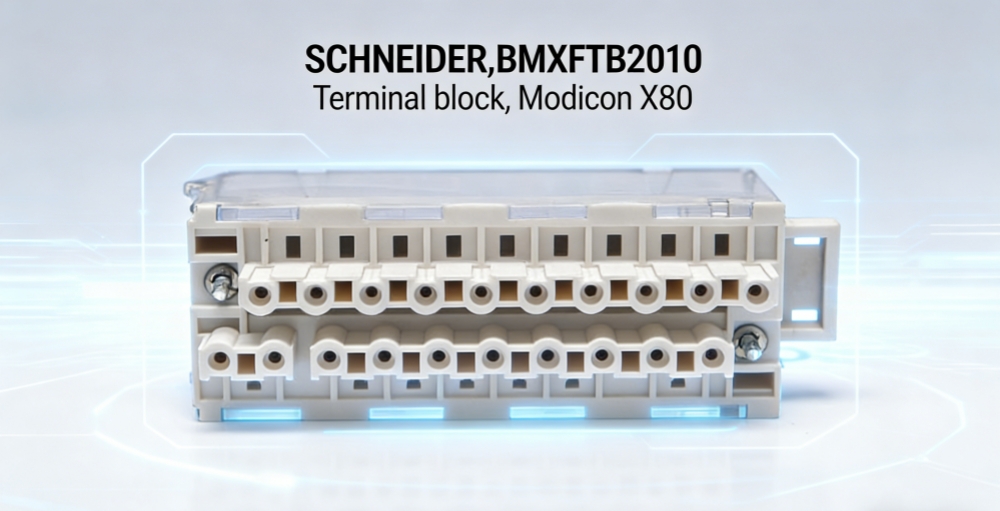

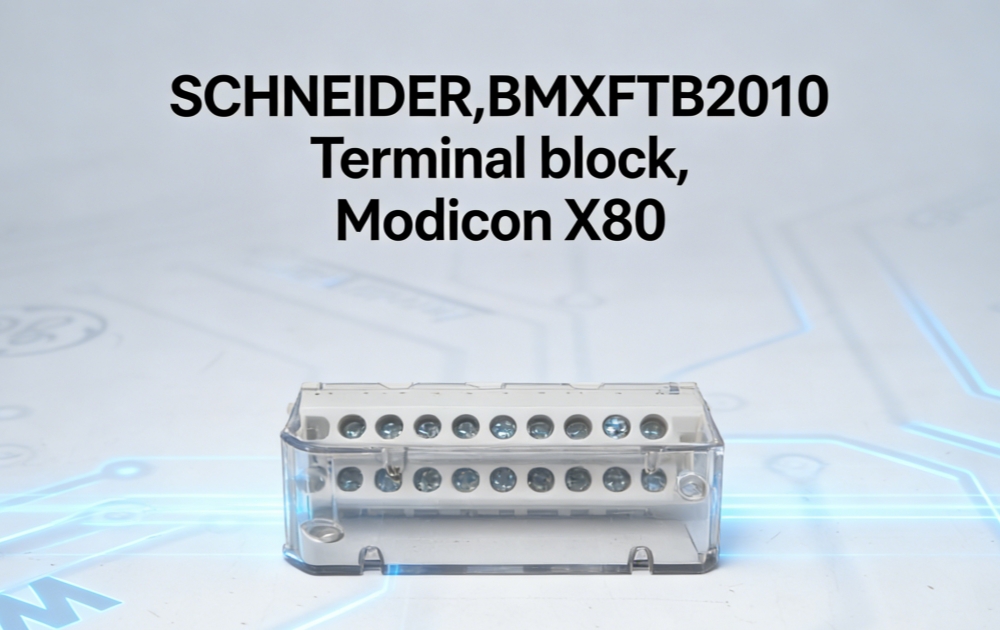

The Schneider Electric BMXFTB2010 is a critical connectivity component designed specifically for the Modicon M340 and Modicon X80 automation platforms. This 20-pin removable screw clamp terminal block ensures secure, reliable electrical connections in industrial control systems where precision and durability matter most.

Technical Specifications at a Glance

The BMXFTB2010 delivers robust performance specifications tailored for demanding industrial environments. It accommodates wire sizes ranging from 0.34 mm² to 1.5 mm² (equivalent to 24–16 AWG), providing flexibility for various wiring configurations. The terminal block weighs approximately 0.075 kg (0.165 lb) and features compact dimensions of 46 mm × 36 mm × 110 mm, enabling efficient space utilization within control cabinets.

Operating temperature ranges from -25°C to +60°C, ensuring reliable performance across diverse environmental conditions. The screw clamp connection method guarantees long-term contact stability, even in vibration-prone industrial settings. Additionally, the BMXFTB2010 carries CE, RoHS, and REACH certifications, meeting stringent European environmental and safety standards.

Seamless Integration with Modicon Platforms

The BMXFTB2010 serves as an essential accessory for Modicon M340 programmable automation controllers (PACs). The Modicon M340 platform supports up to 1,024 discrete I/O points and 256 analog I/O channels, delivering processing speeds of 7 Kinst/ms with integrated multitasking capabilities. The BMXFTB2010 enables secure field wiring connections for these high-density I/O modules, facilitating seamless integration into complex automation architectures.

The terminal block's removable design simplifies installation and maintenance procedures. Technicians can pre-wire terminal blocks offline, then snap them securely into position on X80 series I/O modules. This hot-swappable capability minimizes system downtime during maintenance operations—a critical advantage for continuous manufacturing processes.

Applications Across Industrial Sectors

The BMXFTB2010 supports diverse industrial applications including process control, manufacturing automation, water treatment facilities, and energy management systems. The Modicon M340 platform, paired with X80 I/O modules, serves industries ranging from renewable energy to cement production, where the BMXFTB2010 provides essential connectivity infrastructure.

In harsh industrial environments, the BMXFTB2010 demonstrates exceptional durability. The Modicon M340 platform exceeds standard IEC certification requirements, withstanding shocks up to 30g (compared to IEC's 15g requirement) and vibrations up to 3g (exceeding IEC's 1g standard). The terminal block's flame-retardant housing and secure screw clamp mechanism maintain connection integrity under these demanding conditions.

Sustainability and Environmental Compliance

Schneider Electric's commitment to sustainability is evident in the BMXFTB2010's Green Premium certification. The product complies with RoHS directive 2011/65/EU and WEEE directive 2012/19/EU, ensuring minimal environmental impact throughout its lifecycle. Packaging utilizes recycled cardboard with minimum 70% recycled content, supporting circular economy initiatives.

Ordering and Availability

The BMXFTB2010 is commercially available through authorized Schneider Electric distributors worldwide. Bulk packaging options include 60-unit containers for large-scale deployment projects. For procurement inquiries, technical specifications, or volume pricing, contact:

Amikon Limited Sales Manager: May Email: sales5@amikon.cn

Conclusion

The Schneider Electric BMXFTB2010 terminal block represents a small but essential component in industrial automation infrastructure. Its precise engineering, compatibility with the robust Modicon M340 platform, and adherence to international environmental standards make it a reliable choice for system integrators and maintenance professionals. Whether deploying new installations or upgrading existing control systems, the BMXFTB2010 delivers the connection reliability that industrial automation demands.
