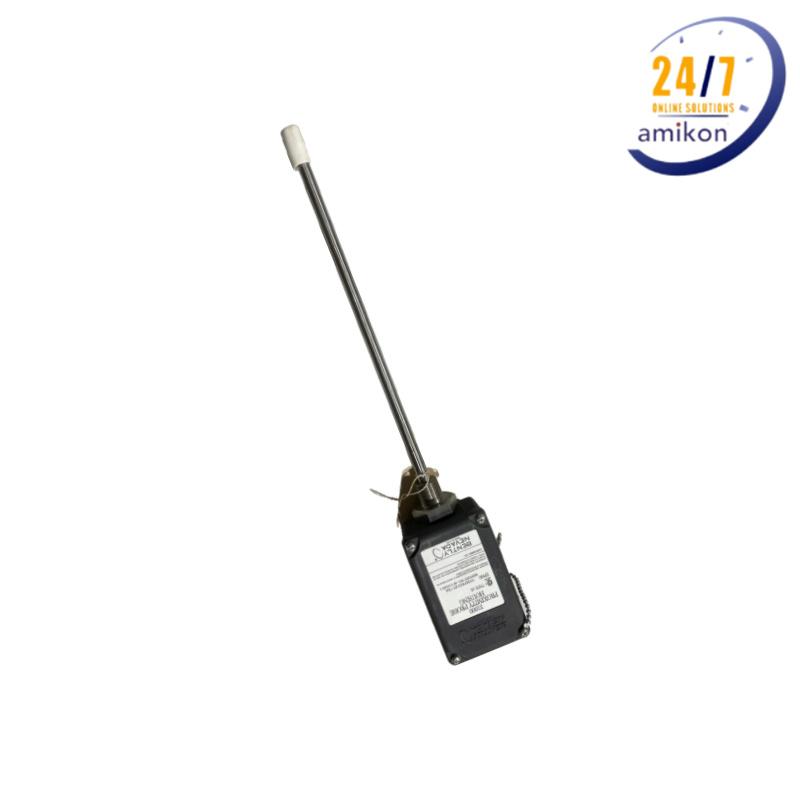

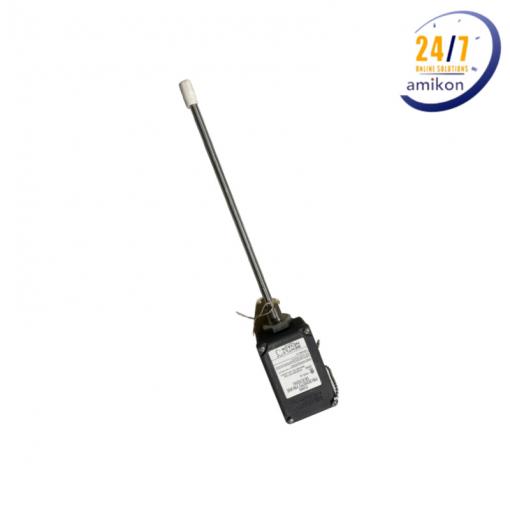

Bently Nevada | 31000-28-10-00-026-00-02 | Proximity Probe Housing Assembly

31000-AA-BB-CC-DDD-EE-FF

A: Probe with Connector

00 Probe not required

16 3300 XL 8 mm probe

26 3300 XL NSv probe

27 3300 XL NSv probe, multiple approvals

28 3300 XL 8 mm probe, multiple approvals

29 3300 XL 8 mm probe, with connector protector

30 3300 XL 8 mm probe, with connector protector, multiple approvals

31 3300 XL NSv probe with connector protector

32 3300 XL NSv probe with connector protector, multiple approvals

33 3300 XL 11 mm probe

34 3300 XL 11 mm probe, multiple approvals

35 3300 XL 11 mm probe with connector protector

36 3300 XL 11 mm probe with connector protector, multiple approvals

B: Probe Cable Length

00 Probe cable not required (Option A must also be 00)

05 0.5 m (20 in)

10 1.0 m (39 in)

C: Standoff Adapter Length (Option C Dimension)

D: Probe Penetration Option (Option D Dimension)

Must be ordered if Standoff Adapter Length option is not 00.

15 Minimum length 1.5 in (38 mm)

75 Maximum length 7.5 in (191 mm)

Recommendation :

Order in increments of 0.5 in (13 mm)

Examples

1.5 in (38 mm) = 15

No standoff adapter = 00

10 Minimum length 1.0 in (25.4 mm)

Recommendation :

Order in increments of 0.1 in (3 mm)

Examples

No probe sleeve = 000

3.7 in (94 mm) = 037

22.4 in (569 mm) = 224

"C" plus "D" dimensions greater than 12 in (305 mm) require additional sleeve support near the probe to prevent resonance from occurring. Sleeve adjustment range of Probe Penetration Option "D" is ±0.5 in (13 mm).

For probe penetration lengths between 1.0 and 2.0 inches, it may be necessary to counter bore the machine case to reduce probe side view or rear view effects.

E: Fittings

00 Without fittings

01 One 3/4-14 NPT fitting, two plugs.

02 Two 3/4-14 NPT fittings, one plug.

06

• One 3/4-14 NPT fitting

• One 3/4-14 NPT to 1/2-14 NPR SST reducer

• Two plugs

03

Two plugs, one 3/4-14 NPT fitting

One 3/4-14 to 1/2-14 NPT SST reducer

One cable seal grip with grommets for

the following cable sizes:

• 1/8 to 3/16 inches

• 1/4 to 5/16 inches

• 5/16 to 3/8 inches

F: Mounting Thread Option

00 No outer sleeve, retainer, or retaining nut

02 3/4-14 NPT (Required if ordering Standoff Adapter Option).

05 7/8-14 UNF 2A
