Brand/ Manufacturer:
Bently NevadaManufacturer Part Number:
31000-28-10-00-020-03-02Additional Information:

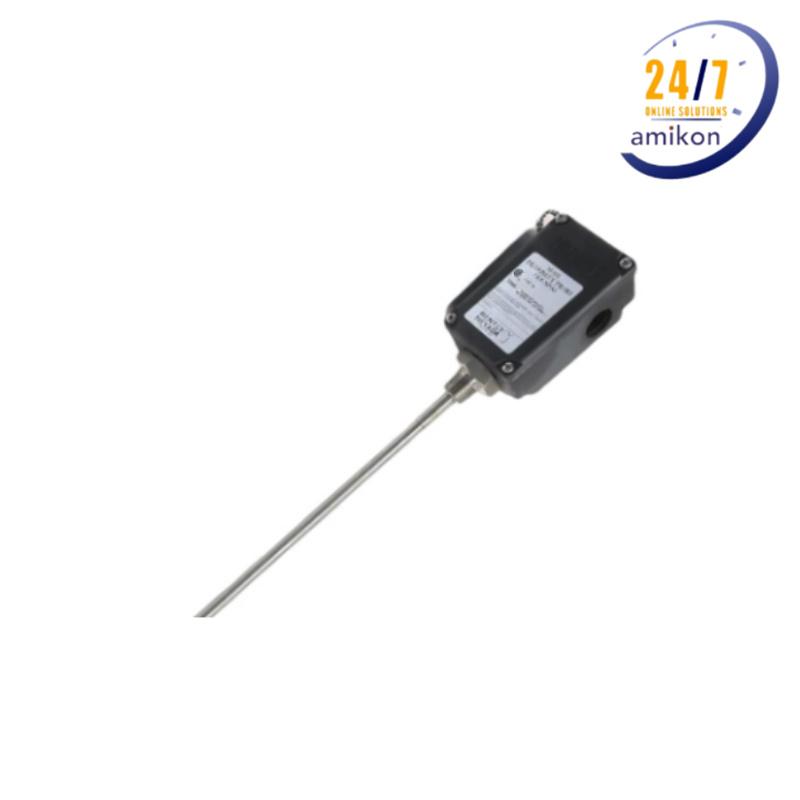

Proximity Probe Housing AssemblyCondition:
Brand New Factory Sealed - OriginalAvailability:
1Warranty:
12 MonthsEstimated Weight:
1 kgCountry of Origin:
USAHS Code:
8538900000Shipping:
Worldwide by DHL /Fedex /TNT / UPSProduct Detail
Contact Us For Discounts
|
Sales Manager: May |
|
Email: sales5@amikon.cn |
|
Phone/WhatsApp: +86-18106909650 |
|
31000-AA-BB-CC-DDD-EE-FF |
|
|
A: Probe with Connector |
|
|
00 Probe not required 16 3300 XL 8 mm probe 26 3300 XL NSv probe 27 3300 XL NSv probe, multiple approvals 28 3300 XL 8 mm probe, multiple approvals 29 3300 XL 8 mm probe, with connector protector 30 3300 XL 8 mm probe, with connector protector, multiple approvals |
31 3300 XL NSv probe with connector protector 32 3300 XL NSv probe with connector protector, multiple approvals 33 3300 XL 11 mm probe 34 3300 XL 11 mm probe, multiple approvals 35 3300 XL 11 mm probe with connector protector 36 3300 XL 11 mm probe with connector protector, multiple approvals |
|
B: Probe Cable Length |
|
|
00 Probe cable not required (Option A must also be 00) 05 0.5 m (20 in) 10 1.0 m (39 in) |
|
|
C: Standoff Adapter Length (Option C Dimension) |
D: Probe Penetration Option (Option D Dimension) |
|
Must be ordered if Standoff Adapter Length option is not 00. 15 Minimum length 1.5 in (38 mm) 75 Maximum length 7.5 in (191 mm) Recommendation : Order in increments of 0.5 in (13 mm) Examples 1.5 in (38 mm) = 15 No standoff adapter = 00 |
10 Minimum length 1.0 in (25.4 mm) Recommendation : Order in increments of 0.1 in (3 mm) Examples No probe sleeve = 000 3.7 in (94 mm) = 037 22.4 in (569 mm) = 224
|
|
"C" plus "D" dimensions greater than 12 in (305 mm) require additional sleeve support near the probe to prevent resonance from occurring. Sleeve adjustment range of Probe Penetration Option "D" is ±0.5 in (13 mm). For probe penetration lengths between 1.0 and 2.0 inches, it may be necessary to counter bore the machine case to reduce probe side view or rear view effects. |
|
|
E: Fittings |
|
|
00 Without fittings 01 One 3/4-14 NPT fitting, two plugs. 02 Two 3/4-14 NPT fittings, one plug. 06 • One 3/4-14 NPT fitting • One 3/4-14 NPT to 1/2-14 NPR SST reducer • Two plugs |
03 Two plugs, one 3/4-14 NPT fitting One 3/4-14 to 1/2-14 NPT SST reducer One cable seal grip with grommets for the following cable sizes: • 1/8 to 3/16 inches • 1/4 to 5/16 inches • 5/16 to 3/8 inches |
|
F: Mounting Thread Option |
|
|
00 No outer sleeve, retainer, or retaining nut 02 3/4-14 NPT (Required if ordering Standoff Adapter Option). 05 7/8-14 UNF 2A |
|
