Amikon have large of GE Excitation cards inventory.
GE FANUC IS420UCSBH4A Mark VIe UCSB Controller
IS420UCSBH4A - Controller module is available in stock which ships the same day.
IS420UCSBH4A - Controller module comes in UNUSED as well as NEW condition.

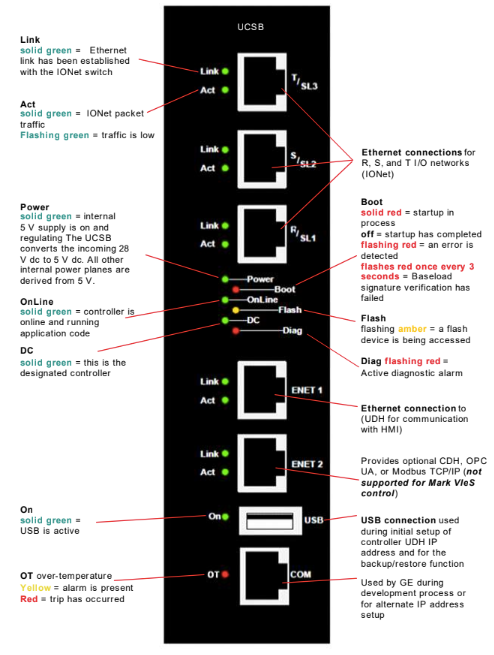

What is GE Mark VIe IS420UCSBH4A?
It is a high-performance UCSB Controller Module with a 1066 MHz Intel EP80579 microprocessor.
What is a UCSB Controller?
The UCSB controller is a single-board, stand-alone processor with scalable processing power.
There are no batteries or jumper settings required because it has a built-in power supply.
What is the application of the module?
The module allows interoperable redundant configurations that incorporate many platform types into a single redundant set.
What is the operating temperature of the component?
The operating temperature ranges from 22 to 149 degrees Fahrenheit.
UCSB SOFTWARE AND COMMUNICATION:
Software customized for the controller's use is installed. Rungs or blocks can be run by it. Without needing to restart, small changes to the control software can be done online. The clocks of the 1/O packs and controllers are synchronized within 100 microseconds using the IEEE 1588 protocol via the R, S, and T IONets. Through the R, S, and T IONets, external data is sent to and received from the control system database in the controller. This comprises the I/O modules' process inputs and outputs.
Obsolete models of GE Speedtronic & GE Excitation
GE Mark I & GE Mark II : IC360 IC365 IC660 IC610
GE Mark IV : DS3800 DS3820
GE Mark V : DS200 531X DS215 DS2020
Current models of GE Speedtronic & GE Excitation
GE Mark VI : IS215 IS200 IS210 IS220 IS230 IS2020
GE Excitation EX 2100 : IC752 IC693 IC694 IC695 IC698
FANUC CNC : A06B-0104-B111 7000
GE Multilin : VMIVME-7750-746000 PQMII-T20-C-A SR469
GE QuickPanel : QPI-3D200-S2P QPI-3D200-E2P
Amikon has the ability to support end users who need parts to keep their obsolete panels operational.
