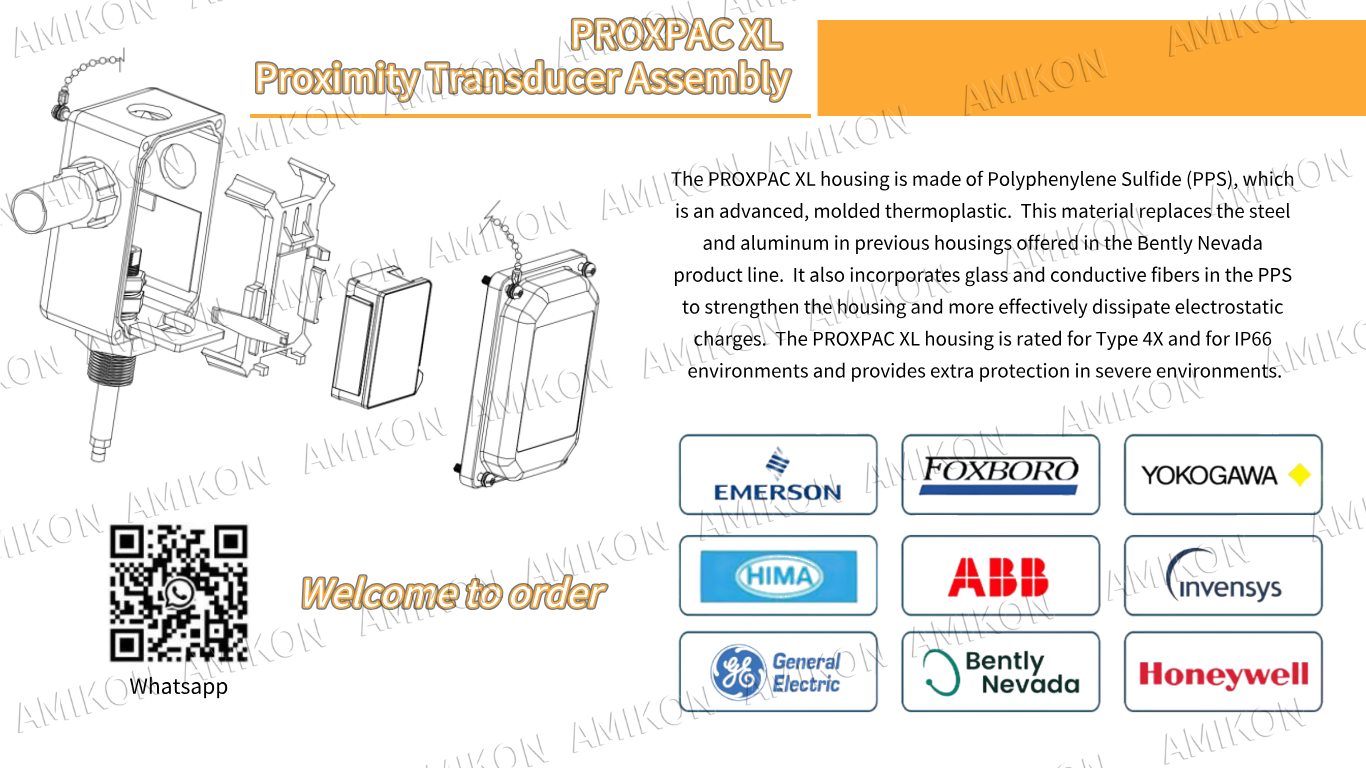

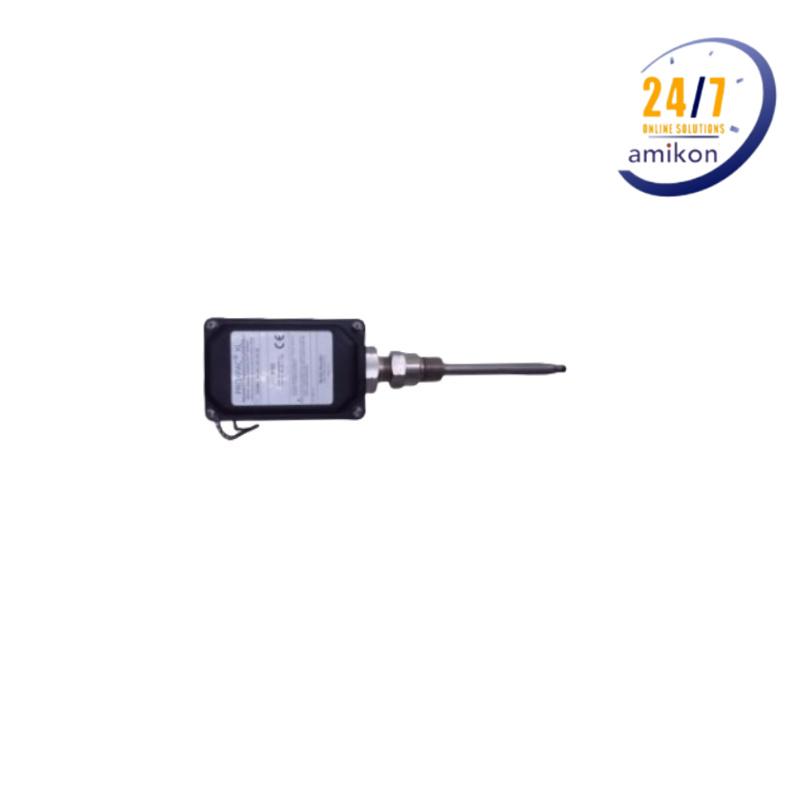

Bently Nevada | 330881-28-05-060-00-02 | PROXPAC XL Proximity Transducer

Use with standard instruction manual

May [sales5@amikon.cn]

330881-AA-BB-CCC-DD-EE

A: Probe and Approvals Option

0 0 No probe; Proximitor sensor without approvals

0 1 No probe; Proximitor sensor with Multiple Approvals

1 6 3300 XL 8 mm probe without approvals

2 8 3300 XL 8 mm probe with Multiple Approvals

B: Standoff Adapter Option

Order in increments of 10 mm.

Minimum length: 40 mm

Maximum length: 200 mm

Examples

00 No standoff adapter

04 40 mm

20 200 mm

C: Probe Penetration Option

For penetration lengths between 25 and 50 mm, counter bore may be required in machine case to reduce probe side view and/or rear view effects.

Order in increments of 1 mm.

Minimum length: 25 mm

Maximum length: 760 mm

Examples

000 No probe sleeve

050 50 mm

760 760 mm

D: Fittings Option (supplied as a kit)

Conduit fittings are necessary when hardline conduit or metal piping is brought into the housing. If using flexible conduit, you should  order with integral 3/4-14 NPT fittings so that you do not require additional

conduit fittings with the housing. If using flexible conduit, order the D = 00 option.

00 No fittings; two plugs and two washers

01 One M25 fitting, two plugs

02 Two M25 fittings, one plug

03 One M20 fitting, two plugs

05 One PG21 to PG11 reducer, two plugs

06 One 3/4-14 NPT fitting, one 3/4-14 NPT to 1/2-14 NPT SST reducer and two plugs

07 One PG21 x M20 fitting, two plugs

08 Two PG21 x M20 fittings, one plug

E: Mounting Thread Option

00 No outer sleeve assembly

01 M24 X 3

02 3/4-14 NPT (required if ordering Standoff Adapter Option)

Corporate Profile

May [sales5@amikon.cn]

---Decade-Long Industry Specialization

Amikon Limited delivers precision-engineered PLC & DCS solutions with over 10 years of industrial automation expertise.

---Optimized Supply Chain Management

Strategically balanced cost-efficiency and accelerated delivery timelines for industrial components.

---Customizable Logistics Solutions

Multimodal shipping options tailored to project timelines and budgetary requirements.

---Customer-Centric Partnership Development

Cross-functional professional teams focused on long-term relationship building through technical excellence and operational reliability.

Welcome to Inquiry Below

May [sales5@amikon.cn]

1.Probe Series

3300 NSv Standard Probe

● Order Number: 330910-xx-xx-xx (suffix varies by length/thread type)

● Thread Options: M10x1, M8x1, 1/4-28 UNF, etc.

● Features: Vibration/displacement measurement in standard industrial environments; armor optional (Armored/Unarmored).

3300 NSv High-Temperature Probe

● Order Number: 330930-xx-xx-xx

● Features: Withstands up to 260°C (500°F); ideal for gas turbines, steam turbines, and other high-temperature applications.

2.Extension Cables

3300 XL NSv Standard Cable

● Order Number: 330800-xx-xx (length options: 05=5m, 10=10m; e.g., 330800-05-00 = 5m)

● Connector Type: Aviator connector (MIL-C-5015 compliant).

3300 XL NSv High-Temperature Cable

● Order Number: 330850-xx-xx

● Temperature Rating: 200°C (392°F); compatible with high-temperature probes.

3.Proximitor (Preamplifier)    3300 XL NSv Proximitor

Single-Channel Proximitor

● Order Number: 330180-90-00

● Input Voltage: 18–30 VDC; standard 4–20 mA output.

Dual-Channel Proximitor

● Order Number: 330180-91-00

● Application: Space-saving two-channel monitoring.

4.Mounting Brackets & Accessories

3300 NSv Probe Mounting Bracket (M10)

● Order Number: 330102-00-00

● Material: Stainless steel; compatible with M10-thread probes.

3300 NSv Probe Holder Kit

● Order Number: 330105-01-00

● Includes: Mounting base, locknut, and anti-rotation shims.

5.Calibration Tools

TK-3 Proximitor Tester

● Order Number: 81070-01

● Function: Field calibration of proximitor output signals.

3300 XL NSv Calibration Kit

● Order Number: 330700-01-00

● Includes: Calibration gap gauges, test cables, and accessories.
