Brand/ Manufacturer:
Bently NevadaManufacturer Part Number:
32000-16-05-00-080-03-02Additional Information:

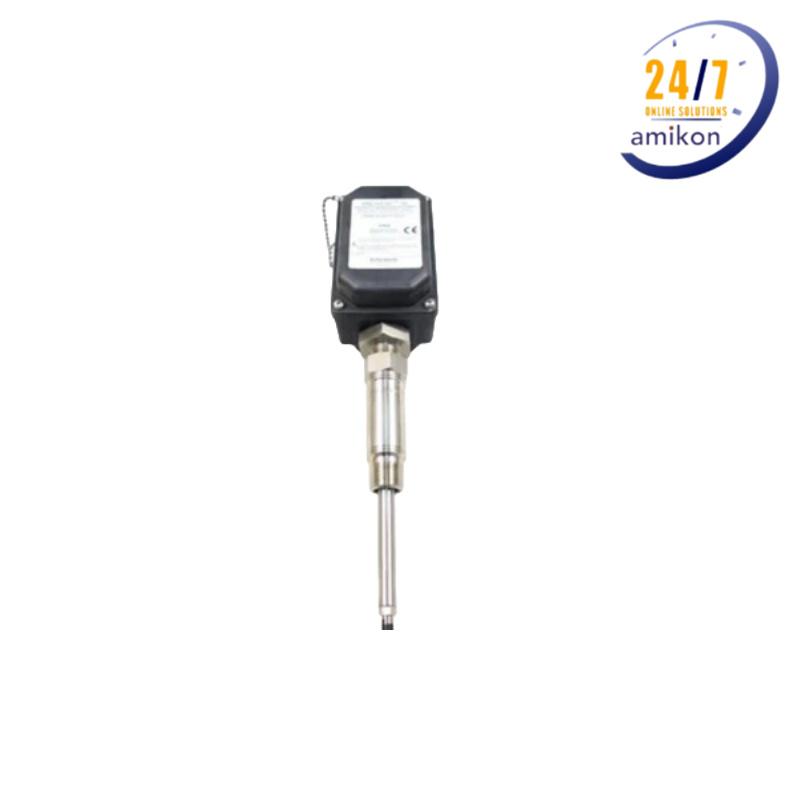

Proximity Probe Housing AssemblyCondition:
Brand New Factory Sealed - OriginalAvailability:
1Warranty:
12 MonthsEstimated Weight:
1 kgCountry of Origin:
USAHS Code:
8538900000Shipping:
Worldwide by DHL /Fedex /TNT / UPSProduct Detail
|
Please believe we can do better |
|
||
|
Sales manager |
|
|
Website |
|
May |
|||
|
Excellent product quality |
32000-AA-BB-CC-DDD-EE-FF |
|
A: Probe with Connector |
|
|
00 Probe not required 16 3300 XL 8 mm probe 26 3300 XL NSv probe 27 3300 XL NSv probe, multiple approvals 28 3300 XL 8 mm probe, multiple approvals 29 3300 XL 8 mm probe, with connector protector 30 3300 XL 8 mm probe, with connector protector, multiple approvals |
31 3300 XL NSv probe with connector protector 32 3300 XL NSv probe with connector protector, multiple approvals 33 3300 XL 11 mm probe 34 3300 XL 11 mm probe, multiple approvals 35 3300 XL 11 mm probe with connector protector 36 3300 XL 11 mm probe with connector protector, multiple approvals |
|
B: Probe Cable Length |
|
|
00 Probe cable not required (Option A must also be 00) 05 0.5 m (20 in) 10 1.0 m (39 in) |
|
|
C: Standoff Adapter Length (Option C Dimension) |
D: Probe Penetration Option (Option D Dimension) |
|
Must be ordered if Standoff Adapter Length option is not 00. 04 Minimum length 40 mm 20 Maximum length 200 mm Recommendation: Order in increments of 10 mm
|
760 Maximum length 760 mm 025 Minimum length 25 mm Recommendation: Order in increments of 1.0 mm Examples No probe sleeve = 000 50 mm = 050 760 mm = 760 |
|
"C" plus "D" dimensions greater than 12 in (305 mm) require additional sleeve support near the probe to prevent resonance from occurring. Sleeve adjustment range of Probe Penetration Option "D" is ±0.5 in (13 mm). For probe penetration lengths between 1.0 and 2.0 inches, it may be necessary to counter bore the machine case to reduce probe side view or rear view effects. |
|
|
E: Fittings |
|
|
00 Without fittings; two plugs and two washers. 01 One M25 fitting, two plugs. 02 Two M25 fittings, one plug. 05 One DIN PG11 fitting, two plugs
|
03 •Two plugs, one M20 fitting •One cable seal grip with grommets for armored probe cable 07 •One PG21 x M20 fitting •Two plugs 08 •Two PG21 x M20 fittings •One plug |
|
F: Mounting Thread Option |
|
|
00 No outer sleeve, retainer, or retaining nut 01 M24 X 3 02 3/4-14 NPT (Required if ordering Standoff Adapter Option.) |
|
|
Learn more about Bently Nevada |
|
|
I. Mechanical Monitoring & Protection
3500 Series Monitoring System
3300 XL Approach Probe System II. Condition Monitoring Sensors
7200 Vibration Transmitters
1900/65 Speed Sensors III. Accessories
3300 Extension Cables & Connectors |
|
