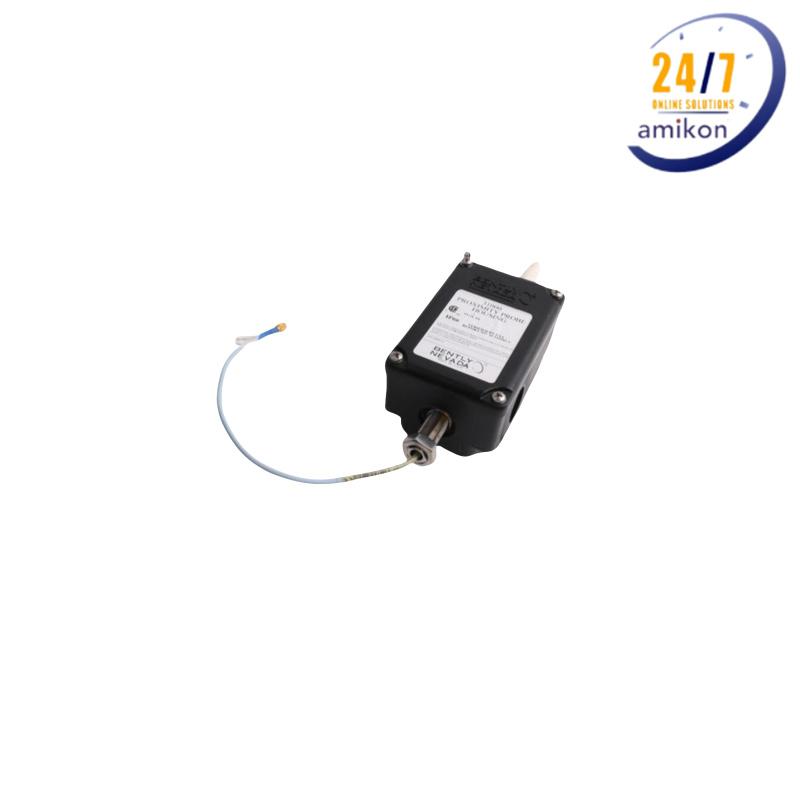

Bently Nevada | 31000-28-05-50-050-03-02 | Proximity Probe Housing Assembly

If you have any questions, please feel free to contact us.

Sales manager : May

Email: sales5@amikon.cn

We chat id:  dcsfcs

Whatsapp： +86 18106909650

31000-AA-BB-CC-DDD-EE-FF

A: Probe with Connector

00 Probe not required

16 3300 XL 8 mm probe

26 3300 XL NSv probe

27 3300 XL NSv probe, multiple approvals

28 3300 XL 8 mm probe, multiple approvals

29 3300 XL 8 mm probe, with connector protector

30 3300 XL 8 mm probe, with connector protector, multiple approvals

31 3300 XL NSv probe with connector protector

32 3300 XL NSv probe with connector protector, multiple approvals

33 3300 XL 11 mm probe

34 3300 XL 11 mm probe, multiple approvals

35 3300 XL 11 mm probe with connector protector

36 3300 XL 11 mm probe with connector protector, multiple approvals

B: Probe Cable Length

00 Probe cable not required (Option A must also be 00)

05 0.5 m (20 in)

10 1.0 m (39 in)

C: Standoff Adapter Length (Option C Dimension)

Must be ordered if Standoff Adapter Length option is not 00.

15 Minimum length 1.5 in (38 mm)

75 Maximum length 7.5 in (191 mm)

Recommendation Order in increments of 0.5 in (13 mm)

Examples

1.5 in (38 mm) = 15    No standoff adapter = 00

D: Probe Penetration Option (Option D Dimension)

10 Minimum length 1.0 in (25.4 mm)

Recommendation Order in increments of 0.1 in (3 mm)

Examples

No probe sleeve = 000

3.7 in (94 mm) = 037

22.4 in (569 mm) = 224

E: Fittings

00 Without fittings

01 One 3/4-14 NPT fitting, two plugs.

02 Two 3/4-14 NPT fittings, one plug.

03 Two plugs, one 3/4-14 NPT fitting

One 3/4-14 to 1/2-14 NPT SST reducer

One cable seal grip with grommets for

the following cable sizes:

• 1/8 to 3/16 inches

• 1/4 to 5/16 inches

• 5/16 to 3/8 inches

06

One 3/4-14 NPT fitting

One 3/4-14 NPT to 1/2-14 NPR SST reducer

Two plugs

F: Mounting Thread Option

00 No outer sleeve, retainer, or retaining nut

02 3/4-14 NPT (Required if ordering Standoff Adapter Option).

05 7/8-14 UNF 2A
