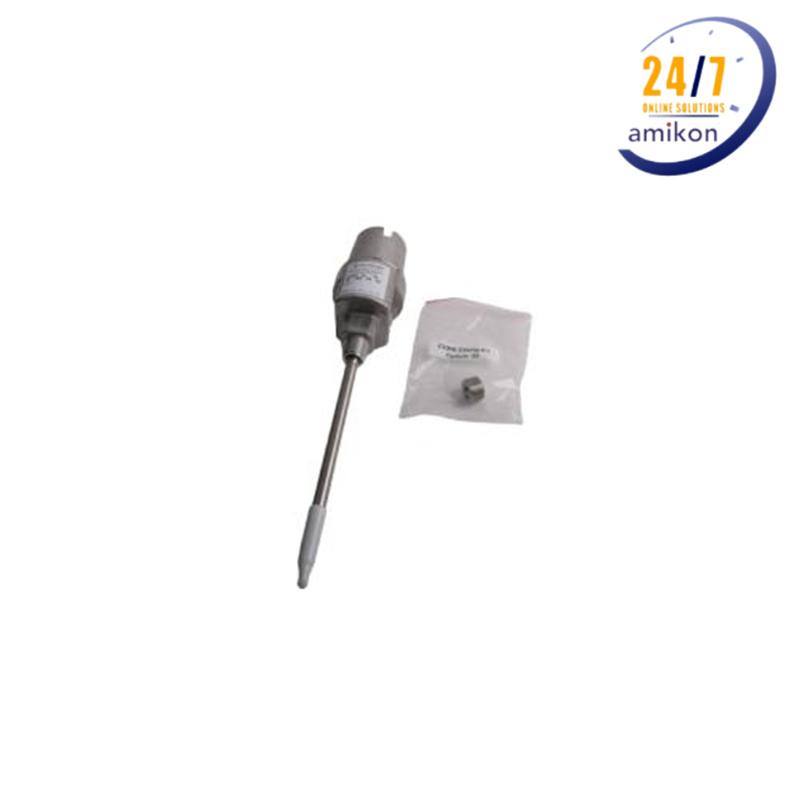

Bently Nevada | 21000-16-10-00-098-04-02 | Proximity Probe Housing Assembly

A Contact Person

sales5@amikon.cn

At Amikon Limited , you will work with an Account Manager who will handle any issues you may have.

Account Managers are fully trained to help you find the highest quality, best prices, and shortest delivery times.

Account Managers are online 24/7 and are ready to help you with any minor issues.

Core Description

21000-AA-BB-CC-DDD-EE-FF

A: Probe with Connector

 00 Probe not required

14 420 nuclear

16 3300 XL 8mm probe

26 3300 XL NSv probe

27 3300 XL NSv probe, selectable hazardous area approvals

28 3300 XL 8mm probe, selectable hazardous area approvals

29 3300 XL 11mm probe

30 3300 XL 11mm probe, selectable hazardous area approvals

31 3300 XL NSv probe with connector protector

32 3300 XL NSv probe with connector protector, selectable hazardous area approvals

33 3300 XL 8mm probe with connector protector

34 3300 XL 8mm probe with connector protector, selectable hazardous area approvals

35 3300 XL 11mm probe with connector protector

36 3300 XL 11mm probe with connector protector, selectable hazardous area approvals

37 3300 XL 8mm probe, ETR, selectable hazardous area approvals (available for 21000 only)

B: Probe Cable Length

00 Probe cable not required

05 0.5 m (20 in)

10 1.0 m (39 in)

12 12.0 in

18 18.0 in

24 24.0 in

30 30.0 in

36 36.0 in

C: Standoff Adapter

D: Probe Penetration

15 Minimum length 1.5 in (38 mm)

75 Maximum length 7.5 in (191 mm)

Recommendation ：

Order in increments of 0.5 in (13 mm)

Examples :

1.5 in (38 mm) = 15   No standoff adapter = 00

10 Minimum length 1.0 in (25.4 mm)

Other

Recommendation : Order in increments of 0.1 in (3 mm)

Examples :

3.7 in (94 mm) = 037

22.4 in (569 mm) = 224

Probe P/N and S/N may be displayed on a flag label for some combinations of the C plus D options where only a small section of the probe cable is visible.

For probe penetration lengths between 1.0 and 2.0 inches, it may be necessary to counter bore the machine case to reduce probe side view or rear view effects.

If you select a probe penetration length (C plus D) greater than 300 mm (12 in), you must add sleeve

support near the probe to prevent resonance from occurring.

Adjustment range of probe penetration option D is 13 mm (± 0.5 in).

E: Fittings

00 Without fittings

01

One 3/4-14 NPT explosion-proof fitting

One 3/4-14 NPT plug

02 Two 3/4-14 NPT explosion-proof fittings

04 One 3/4-14 NPT plug only

03

One 3/4-14 NPT plug

One 3/4-14 to 1/2-14 NPT reducer

One cable seal grip with grommets for the following cable sizes:

• 1/8 to 3/16 inches

• 1/4 to 5/16 inches

• 5/16 to 3/8 inches

Although explosion-proof fittings are available for all housings, only CA versions of the housing are rated as explosion-proof by CSA when ordered with the E:00, E:01, E:02, or E:04options.

F: Mounting Thread

01 As cast without threads

04 1/2-14 BSP

02 3/4-14 NPT

Must be ordered if Standoff Adapter Length option is not 00
