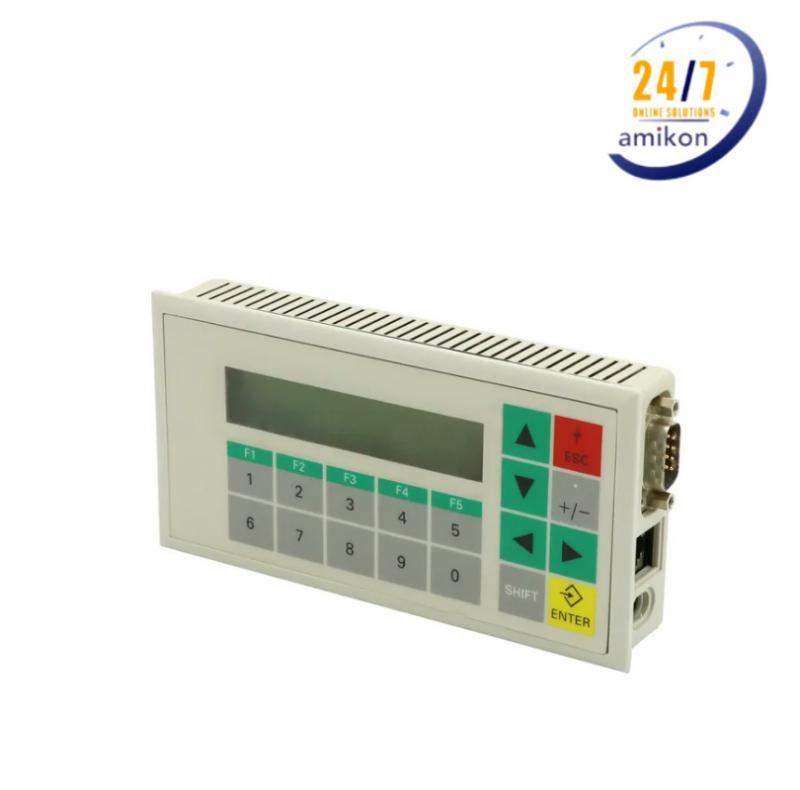

6AV3503-1DB10| SIEMENS Operator Interface Panel OP3

How to contact us

❏Sales manager : May

❏Email : sales5@amikon.cn

❏Skype :+86-18106909650

❏Phone/WhatsApp : +86-18106909650

Product’s Detail

About Us

Technical information for SIEMENS 6AV3503-1DB10

1. Overview

· Type: HMI (Human-Machine Interface) Panel

· Model: 6AV3503-1DB10

· Series: Siemens SIMATIC

· Function: Provides a graphical user interface for interacting with PLCs and other automation systems.

2. Technical Specifications

· Display Type: Touchscreen

· Display Size: 6 inches (approximate)

· Resolution: Typically around 320 x 240 pixels (QVGA)

· Color Depth: 256 colors (8-bit)

· Interface: Various communication interfaces available depending on the model, including MPI, Profibus, or Ethernet.

3. Features

· Operating System: Designed to run Siemens' proprietary software, like WinCC (Windows Control Center) or TIA Portal software.

· Touchscreen: Resistive or capacitive touch technology, depending on the specific model variant.

· User Interface: Typically includes graphical screens, menus, buttons, and other interface elements designed for ease of use in industrial environments.

4. Connectivity

· Communication Ports: Often includes serial ports (RS-232, RS-485), MPI, Profibus, or Ethernet ports for communication with PLCs and other devices.

· Expansion: Options for expansion or connection to additional modules or networks depending on the system design.
