ABB PM564-TP-ETH: Core Industrial Automation Analysis & Top Models
In the field of industrial automation, the demand for efficient, stable, and intelligent hardware devices is growing steadily.

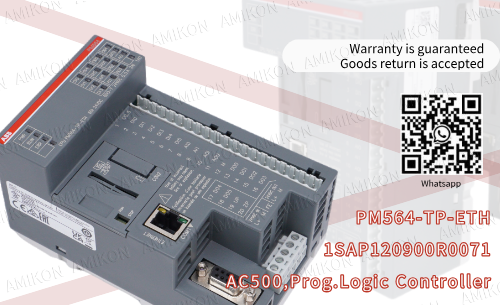

As a global leader in technology, ABB's core module PM564-TP-ETH (model 1SAP120900R0071) has set a benchmark in the industry due to its outstanding performance.
This article will provide an in-depth analysis of the module's features and recommend several best-selling ABB models to help enterprises achieve smart upgrades.
1. Core Value of the PM564-TP-ETH Module
The PM564-TP-ETH is a key communication module in ABB's industrial control systems, designed specifically for complex industrial environments.
It adopts Ethernet communication technology, supports high-speed data transmission, and is compatible with multiple protocols (such as Modbus TCP/IP, PROFINET), enabling seamless integration with PLCs, DCS, and remote monitoring systems.
Its core advantages include:
● High Reliability: With a working temperature range from -40°C to 70°C and an IP20 protection level, the module is capable of operating in harsh industrial environments.
● Flexible Expansion: The module supports modular stacking, making it easy to achieve a distributed layout for I/O points.
● Smart Diagnostics: It comes with built-in real-time fault monitoring, helping reduce downtime and improve operational efficiency.
● Low Power Consumption: The design optimizes energy usage, helping reduce operating costs for businesses.
2. Recommend ABB's best-selling industrial automation products
To meet the needs of various industrial applications, ABB provides a wide range of products to form a complete solution.
The following are several popular models that have recently arrived and their features:
|
Model |
Product Name |
Core Function |
|
GCC960 C103 |
High-performance controller supporting multi-task parallel processing |
|
|
XZC827 A102 |
High-precision analog input module with error rate <0.05% |
|
|
XVC772 A102 |
Redundant communication interface supporting dual-channel hot backup |
|
|
Digital Input Module |
16-channel isolated input with a response time of 1ms |
|
|
Communication Interface Module |
Supports OPC UA protocol for cross-platform data integration |
|
|
Digital Output Module |
Relay output with load capacity of 2A per channel |
|
|
Redundant Power Adapter |
Dual power inputs with automatic switching time <10ms |
|
|
Safety Protection Relay |
SIL3 certification, integrates overload/short-circuit protection |
|
|
Inverter Interface Module |
Supports CANopen communication, frequency precision ±0.01Hz |
|
|
Smart Sensor Adapter |
Compatible with various sensor signals, supports self-calibration |
|
|
High-speed Digital Input Module |
Sampling rate of 1MHz, supports pulse counting and frequency measurement |
3. Typical Application Scenarios and Solutions
◆ Smart Energy Management
The PM564-TP-ETH, in conjunction with the CI801 module, can collect real-time data on grid voltage and current.
Through the GCC960 controller, dynamic load distribution can be achieved. Combined with the SA610 sensor adapter, this optimizes equipment energy consumption, with an overall energy-saving rate of 15%-25%.
◆ Smart Manufacturing Production Lines
The XVC772 A102 redundancy module ensures zero communication interruptions on the production line, while the DO810 module drives precise robotic arm operations.
The DI651 high-speed module monitors assembly accuracy in real-time, forming a closed-loop control system that increases product yield by over 30%.
◆ Chemical Process Control
The XZC827 A102 high-precision module is used for temperature and pressure data collection, combined with the SPICT13A safety relay to provide multi-layer protection, ensuring stable operation of reactors and piping systems.
